Product: CP-URC-TC24PL3C-L-V2-Analog

Original price was: ₹2,500.00.Current price is: ₹1,800.00.

  • 2.4MP PS CMOS Image Sensor
  • Max. 2.4MP (1920×1080)@25/30fps
  • DWDR, Day/Night (ICR), 2D DNR, BLC, HLC
  • 3.6mm Fixed Lens (2.8 mm and 6mm optional)
  • IR Range of 30 Mtrs., Warm Light Range of 20 Mtrs., Smart IR
  • 4 Signals over 1 Coaxial Cable
  • Support Built-in Mic, IP67

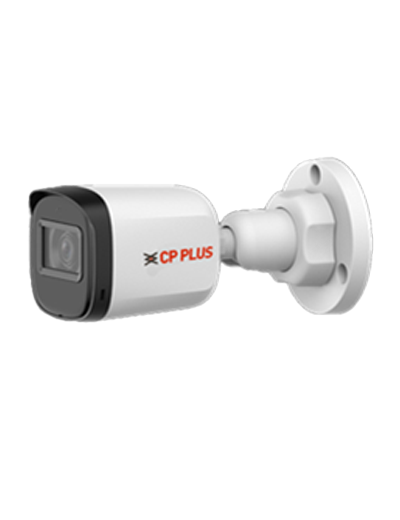

  • 2.4MP Dual Light Bullet Camera – 30Mtr.
  • Equipped with a 2.4 MP Progressive Scan CMOS sensor for sharp, clear Full HD (1920×1080) video output.

  • Supports 25/30 fps at 1080p resolution, delivering smooth and reliable video recording.

  • Multi-format compatibility with CVI / TVI / AHD / CVBS (switchable), making it flexible with different DVR systems.

  • Smart Dual-Light technology with infrared and warm white LEDs ensures visibility in complete darkness.

    • IR night vision range up to 30 m.

    • White light range up to 20 m for full-color images in low-light conditions.

  • Built-in microphone enables audio capture along with video, ideal for surveillance with sound.

  • Fixed lens options available: 3.6 mm (default), 2.8 mm, or 6 mm to suit different coverage requirements.

  • Wide field of view (with 3.6 mm lens): Horizontal ~80°, Vertical ~43°, Diagonal ~94°.

  • DORI distances (3.6 mm lens):

    • Detect: 55 m

    • Observe: 22 m

    • Recognize: 11 m

    • Identify: 5.5 m

  • Advanced imaging features include True Day/Night (ICR filter), DWDR, 2D-DNR, BLC, HLC, and mirror function.

  • Privacy masking supports up to 8 zones for enhanced security customization.

  • Durable IP66-rated housing, designed to withstand dust, rain, and outdoor environments.

  • 3-axis adjustment (Pan 0–360°, Tilt 0–90°, Rotate 0–360°) allows flexible installation.

  • Compact and lightweight design: 146.1 × 70 × 69.8 mm, approx. 0.15 kg.

  • Operates in extreme conditions: –40 °C to +60 °C, up to 95% humidity (non-condensing).

  • Power supply: 12 V DC, with low power consumption (max 3.3 W with LEDs on).
